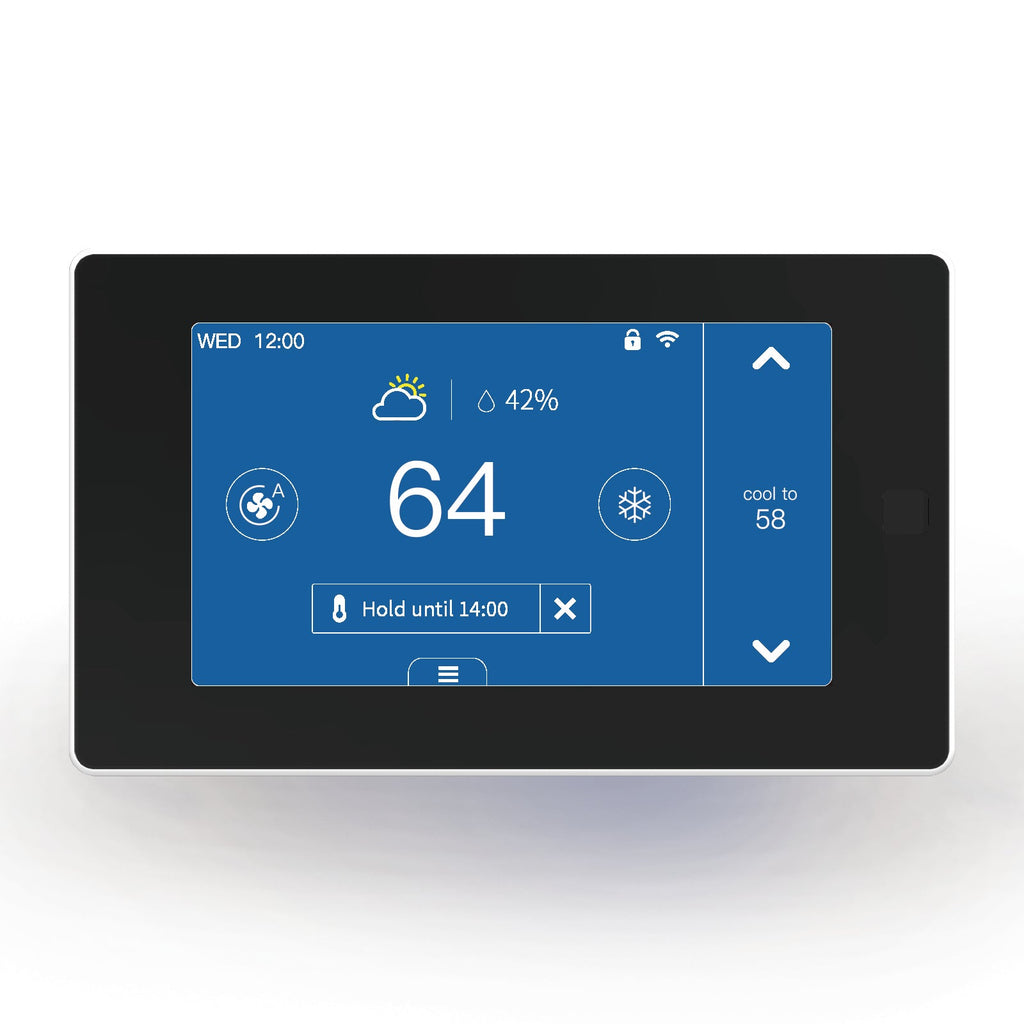

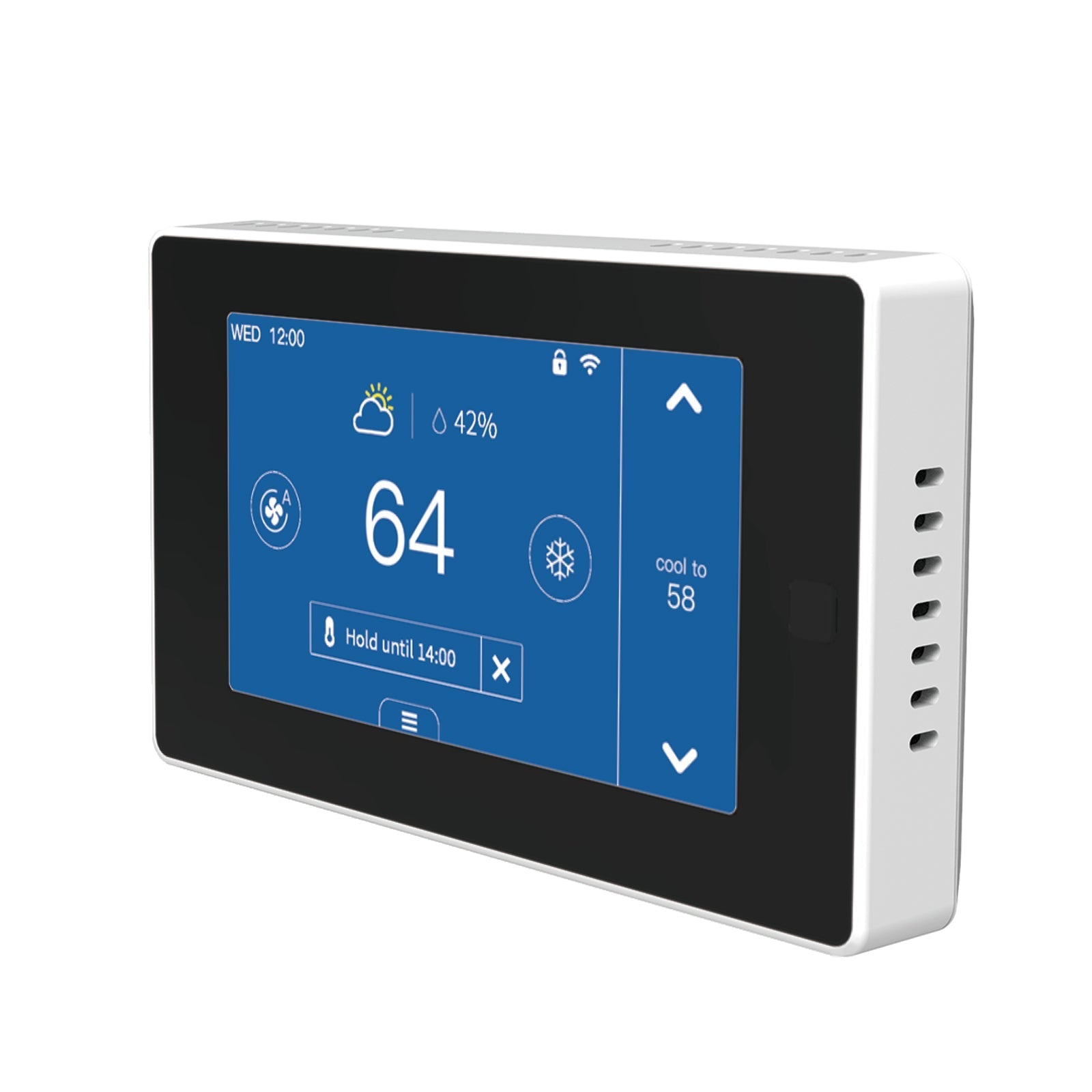

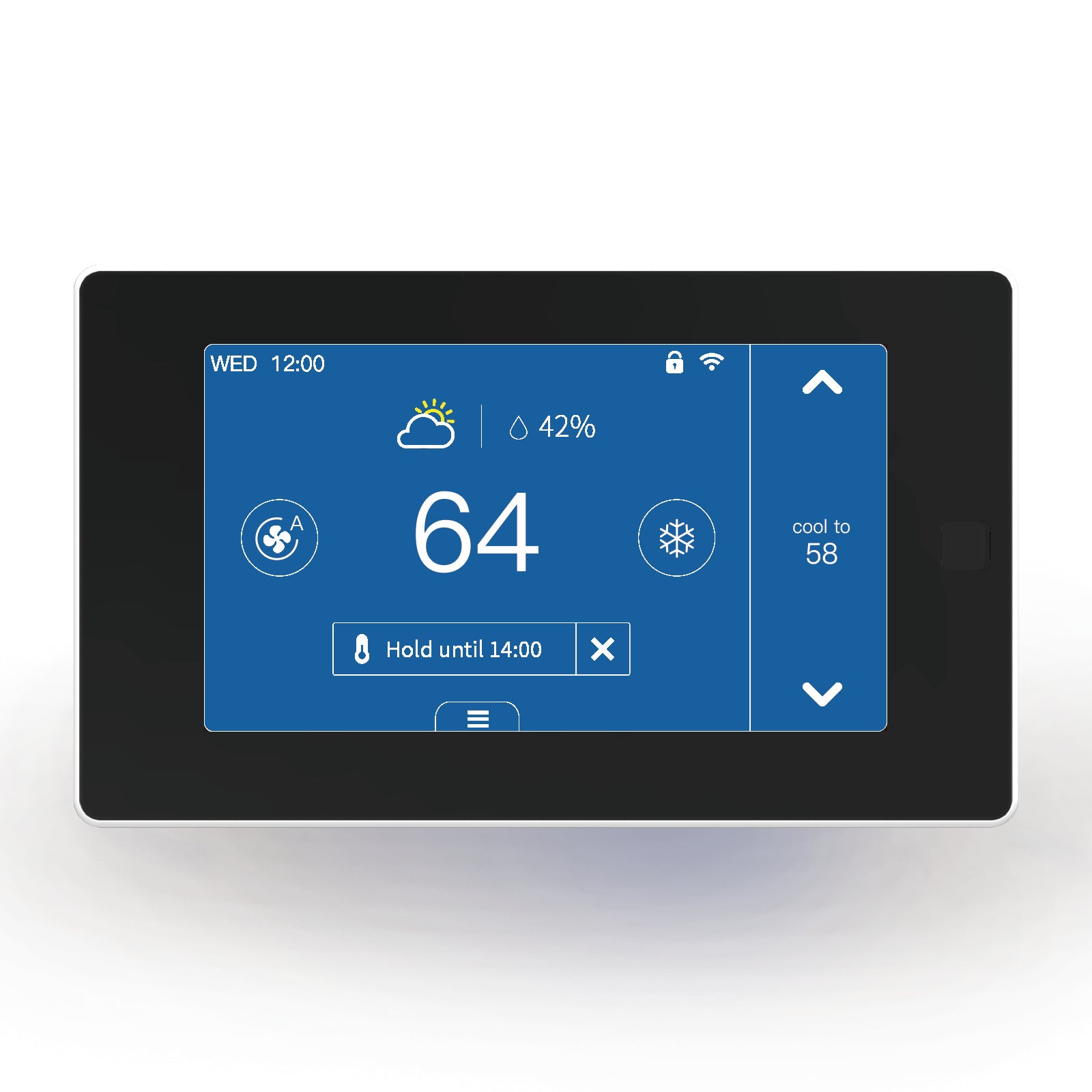

WiFi Smart Home Thermostat Programmable Touchscreen 7 Day/4 Periods Timer with Zone Remote Sensor, C-wire Required 24VAC

Main Features:

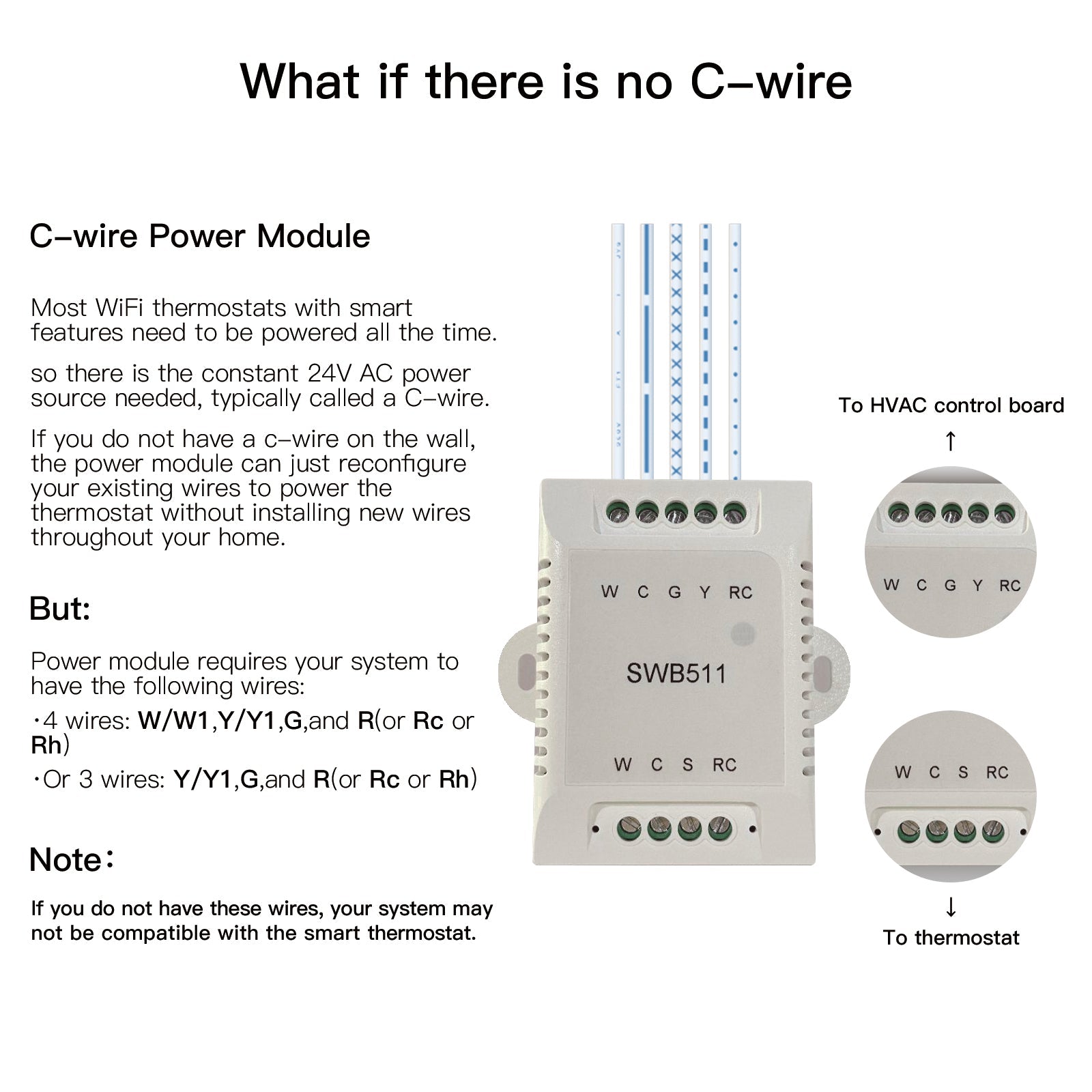

1. Comprehensive Set for House Temperature Control:The new arrival set for room temperature control comes with thewall plate, screws, label, remote sensor,specially the power module for the condition with no C-wire in your house, so you don¡¯t need to spend more on others components,as well as no more worries about purchasing the wrong item with extremely simple installation and operation.(Note:C-wire is required for this thermostat,please confirm you have 4 wires: W/W1, Y/Y1, G, and R (or Rc or Rh) or 3 wires: Y/Y1, G, and R (or Rc or Rh) for our power module when there is no C-wire in your house.)
2. Energy Saving with ¨H and ¡æ Settable:The wonderful new thermostat is functional for HVAC(Switch system mode) and Fan(Switch fan mode) both,even with heat,cool,auto and emergency heat mode optional,saving over 23% energy cost for homeowner, not only by programme also automatic heating and cooling changeover helps a lot.
3. Wireless Control Anytime from Anywhere:Compatible with Tuya Smart APP for wireless remote control on smart phones and real-time monitor on house temperature,together with the compatibility withAmazon Alexa and Google Home for simple voice control,both controlling methods of the smart thermostat;Device share to your family members to control the thermostat together for added convenience.
4. 7-day Programmable with Vacation Setting:Add schedule from Mon.-Sun.for four different modes as Wake,Away,Home and Sleep,together with cooling and heating mode optional for customized temperature setting;Set the vacation mode with depart and return time for the temperature you want upon heating and cooling mode.
5. Manual Touch Setting with Various Features:Screen lights up when movement detectedwith the sensor added, Compressor short cycle protection delay, Smart Alerts(Heating or cooling alerts and air filter change reminders), Geofencing, weather forecast,device password lock,Backlight brightness level adjustable, Periodically circulates fresh air for comfort and health,etc.all functions above are featured for the thermostat;includes full 2-year warranty and 60-day refund guarantee for complete satisfaction.

Attention:

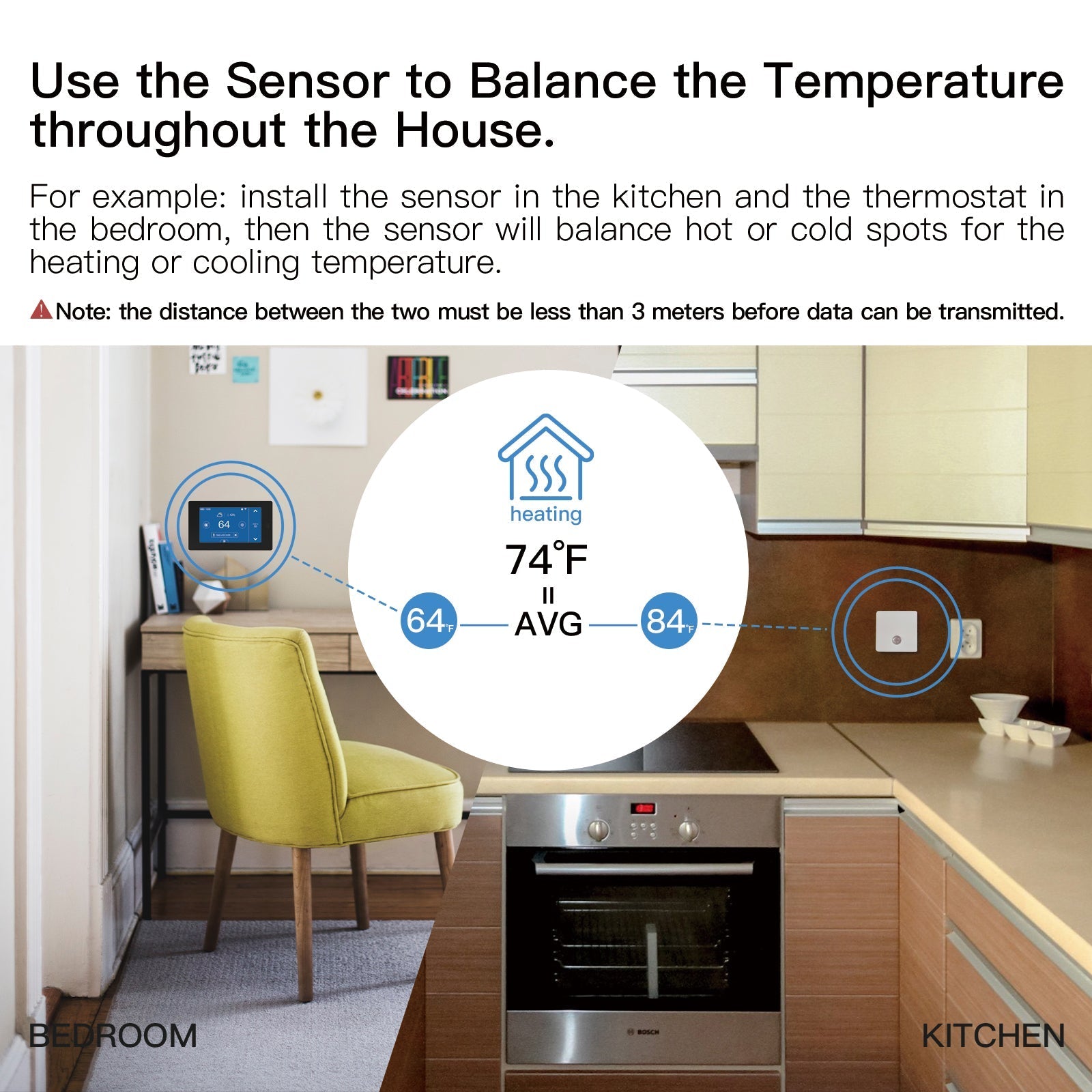

1. The additional remote sensor is added to balance the current temperaturethroughout the home with the smart thermostat,which is functional as a PIR motion sensor also.
2. Compatibility:

• Conventional (2H/2C)
• Heat Pump (4H/2C)
• Supports natural gas,electric,hot water,steam or gravity, gas fireplaces (24 Volts),oil heat sources

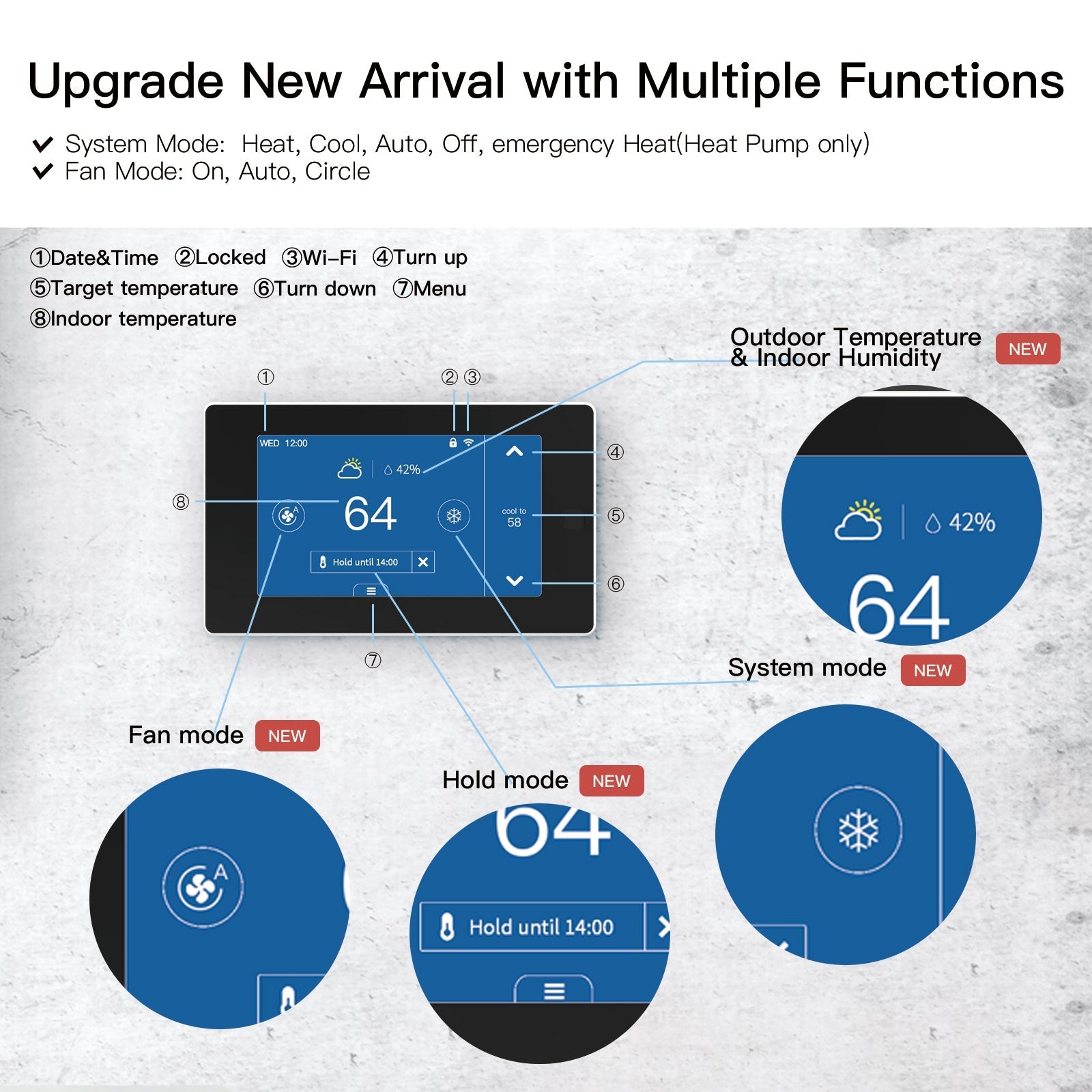

System Mode:  Heat, Cool, Auto, Off, emergency Heat(Heat Pump only)

Fan Mode: On, Auto, Circle

Specification:

• WiFi: Only Support 2.4G, not work with 5G router

• Electrical Rating: 24 VAC, 2A Carry; 5A Surge 50/60 Hz

• Switches/Relays: 9 Latching type relay, 1A maximum

• Operating Temperature: 32¡ã F to 122¡ã F, Humidity range: 5%~95%

• DIP Switch: Power selection

• LED: 2-color LED (Red, Green)

Zone Sensor:

• Battery: DC 3V(Two AAA batteries)

• Radio: 915MHZ (for transmission between thermostat and sensor)

• Sensing Distance: 3m, Angle 70¡ã

• Operating: Temperature range£º32~122¡ã F(Indoor)

• Mounting Type: Tabletop stand or Wall mounting

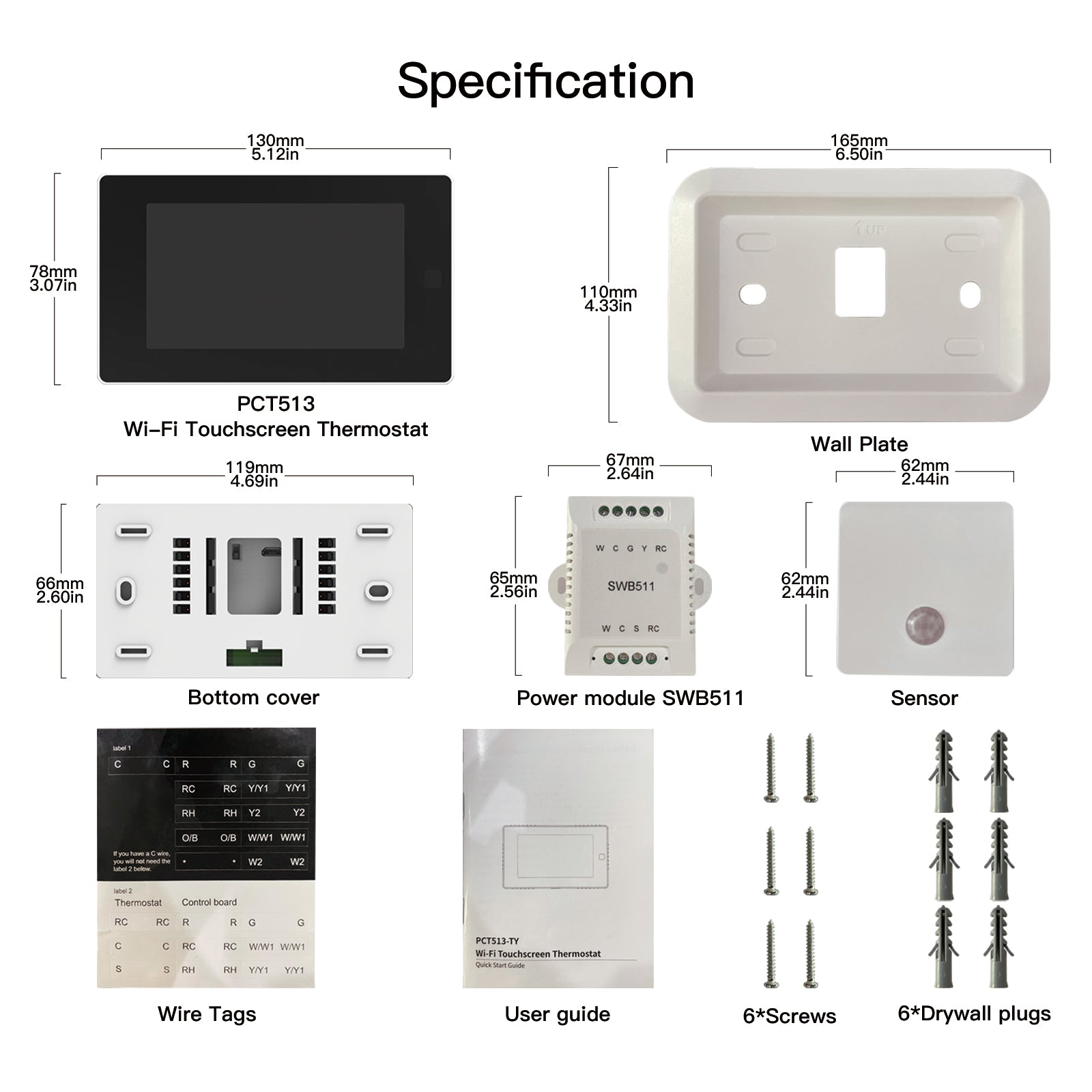

Package List:

• WiFi thermostat *1

• Wall plate*1

• Screws*6

• Drywall plugs*6

• Power module*1

• Remote zone sensor*1

• Wire tags*1

• User guide*1

User Manual:

Q&A£º

1. Q:Does this work with 2.4 and 5G WiFi?

A:Only 2.4G WiFi available, not work with 5G WiFi

2. If I must connect WiFi to use it or I can use it manually on the screen?

A:You can manually control the thermostat on the touch screen.

3. Q: Can I purchase more remote sensors to use with the thermostat?

A:No,there is no need to purchase more than one for the distance between the two must be less than 3 meters before data can be transmitted.

4. Q: Does this thermostat have a locking feature?

A:Yes,there is the locking mode available for the device,together with password setting for added security.

5. Q: Can I control the heat and air at the same time?

A:It is up to your AC system, normally it can be set up easily.
