Availability: Usually Ships in one to three business days.Description
LumiMuse is a brand for anyone interested in using high-quality smart home devices to enjoy a whole-house intelligent lifestyle. Our mission is to design and provide comprehensive solutions to house devices for the enjoyment of our honored customers. LumiMuse believes that ¡°More Smart, More Green.
Why Choose LumiMuse
- True Need
- Trusty Quality
- Attentive Service
- Fast&Free Shipping
Main Features
-
New Compatibility with LumiMuse APP¡¿LumiMuse APP compatible ensures its smart controls by APP for flexible transfer and usage between the public power and battery, featured with the three functional values as grid power, automatic mode and inverter power in the APP for power supply. (Note: All functions on the ATS itself work without any interference to the APP.)
-
¡¾Smart Monitor on Electrical Values with Surge Protection¡¿Timely access to the current voltage of the grid, battery and inverter, especially the current, power and electricity consumption of the load,performing as the advanced power system with surge protection featured for over-current protection. Bluetooth hub is required for smart scene automation but with fast network pairing featured under phone Bluetooth and 2.4G WiFi.
-

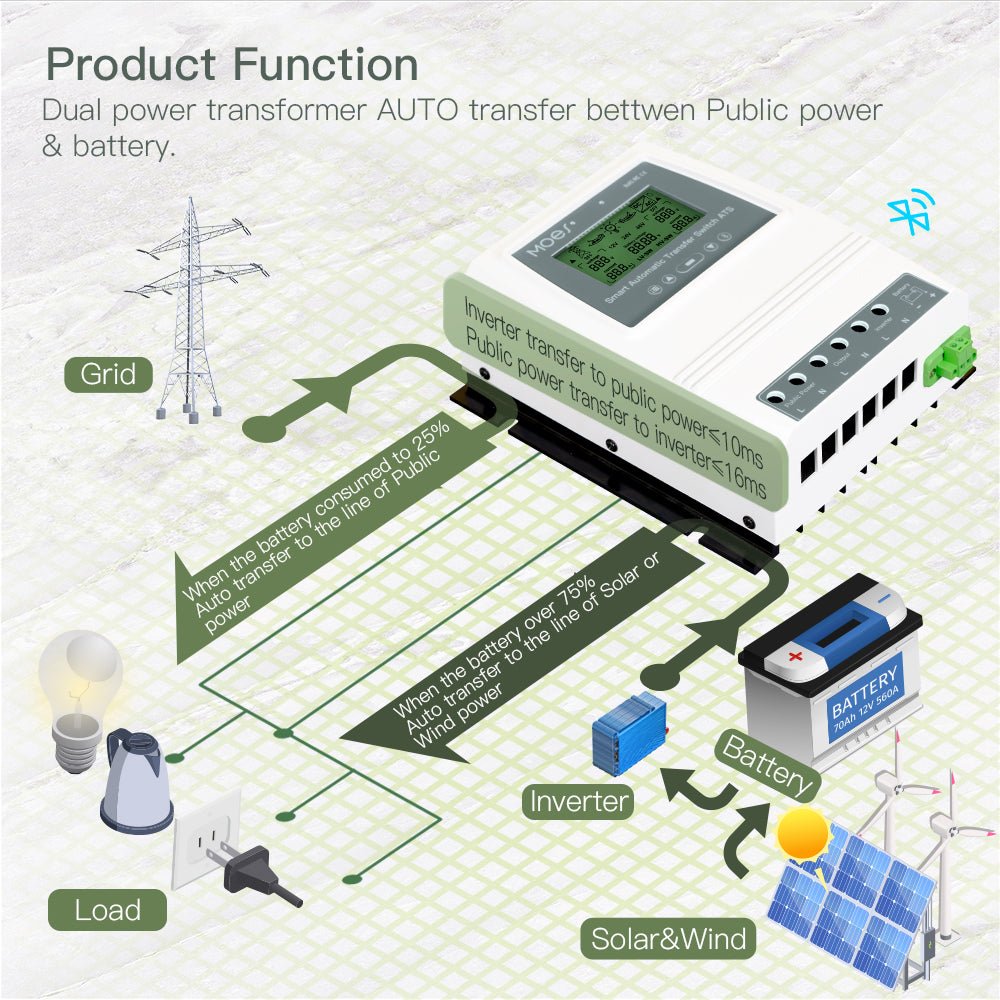

Beneficial to Solar or Wind System with Manual Switch On cloudy or windless days when your battery gets low, it will automatically switch to grid power to protect your battery, especially for the condition that when battery voltage is lower than cut off point, it will automatically switch back to battery power when the battery voltage is higher than recovery point, working like an opposite direction UPS with the updated manual switch function for your convenience.
-
Auto Distinguish with Adjustable Set-points and AC Test¡¿DC 12/24/48V,AC 100-120V 60HZ / 220-240V 50HZ auto distinguish.Users can define the Cut-Off and Recovery Voltage. The recovery voltage must be higher than the Cut-off voltage. Suitable for various battery types such as Sealed, Gel, Lead-acid, Lithium batteries and so on, the battery low voltage transfer and battery recovery set-points are freely adjustable up to the battery type.AC test is functional well as the device will automatically switch to public power when the inverter AC output is abnormal.
-

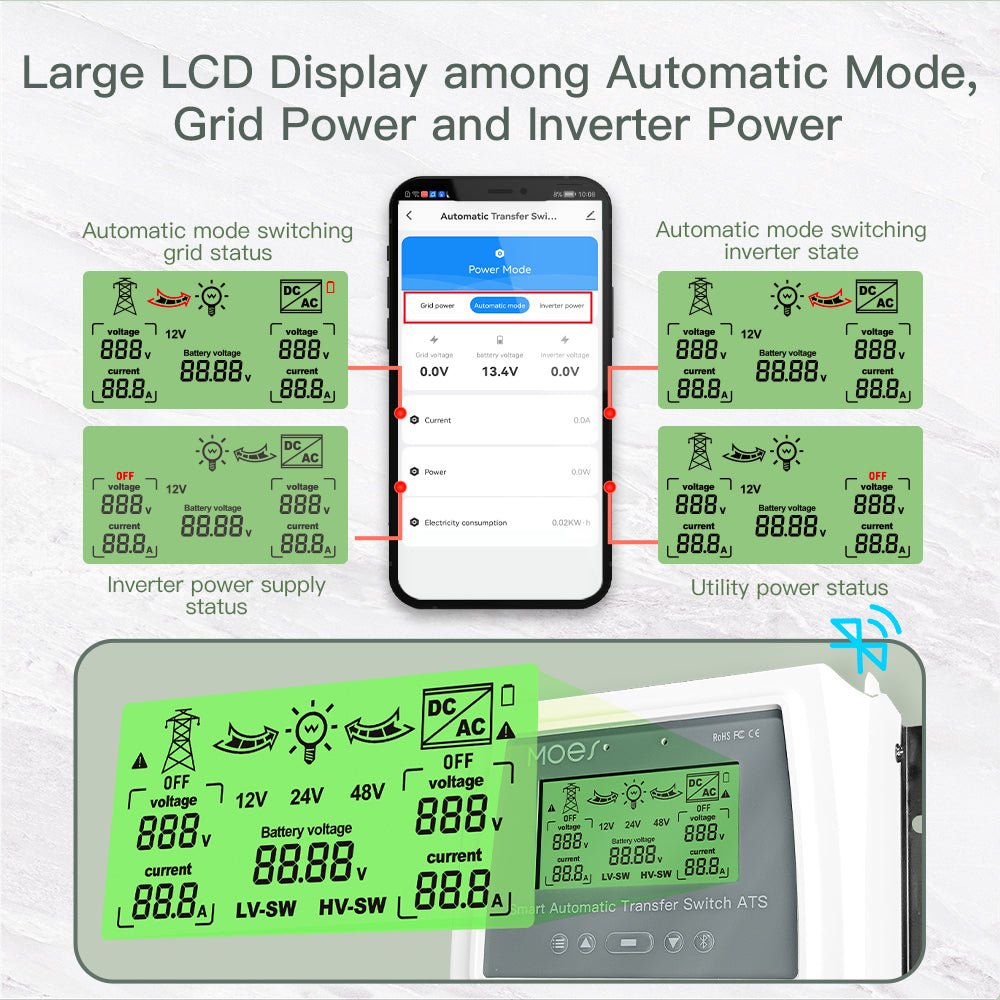

Bigger Power with Large LCD Display¡¿Updated rated power:8KW(110V) or 16KW(220V) and 80A, Fast Transfer time: Inverter transfer to public power ¡Ü10ms, public power transfer to inverter ¡Ü16ms, designed with large LCD display for showing battery real-time voltage, working status of public power, inverter and battery.
Note: The controller needs to connect the battery, powered by the battery and get battery power data; includes full 2-year warranty and 60-day refund guarantee for complete satisfaction.

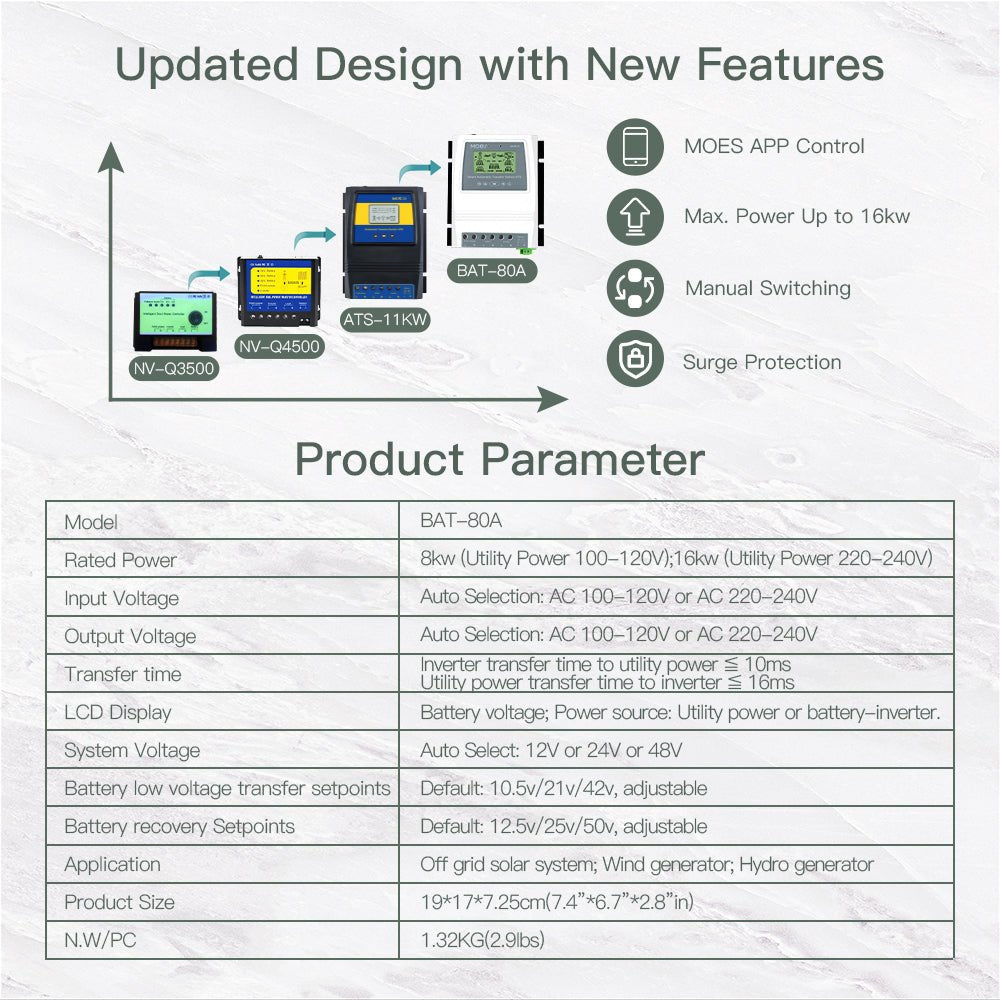

Specifications:
-

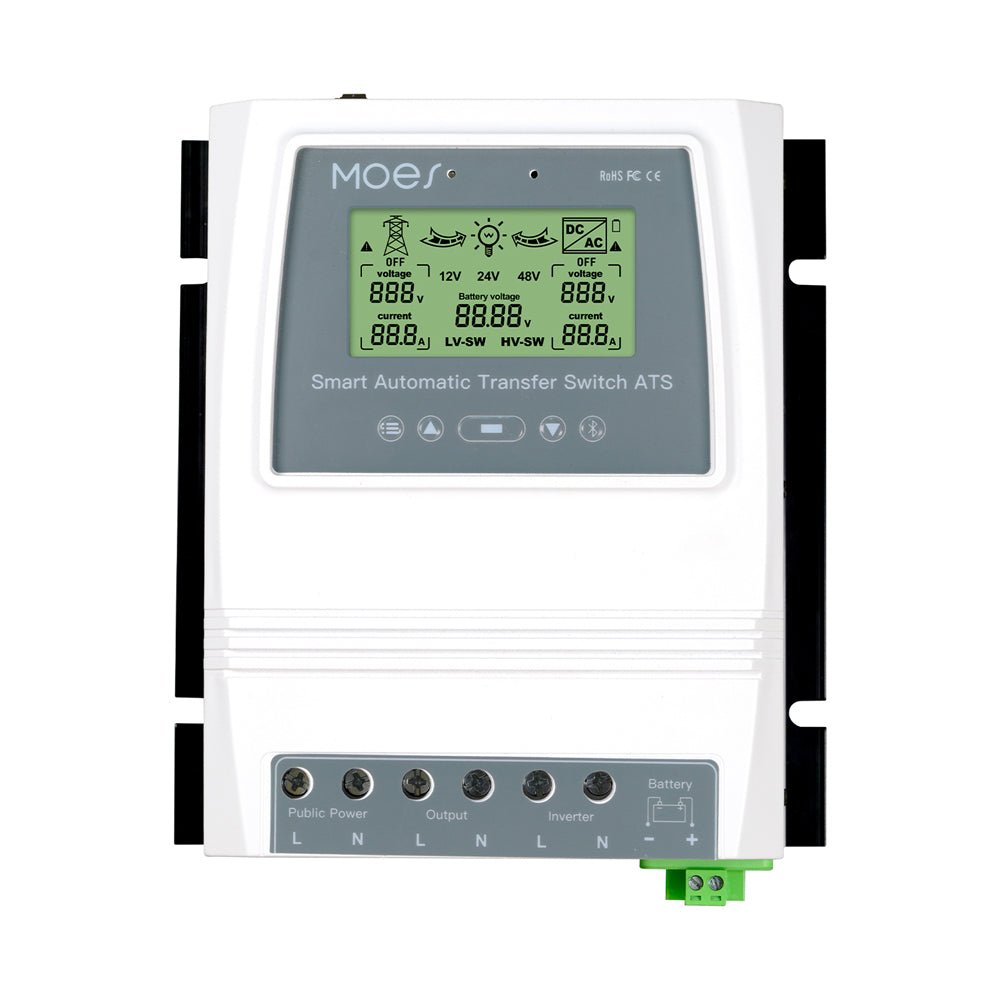

Model: BAT-80A
-
Rated Power: 8kw (Utility Power 100-120V)
16kw (Utility Power 220-240V) -
Input Voltage: Auto Selection: AC 100-120V or AC 220-240V
-
Output Voltage: Auto Selection: AC 100-120V or AC 220-240V
-
Transfer time: Inverter transfer time to utility power
-
Utility power transfer time to inverter
-
LCD Display: Battery voltage; Power source: Utility power or battery-inverter.
-
System Voltage: Auto Select: 12V or 24V or 48V
-
Battery low voltage transfer set-points Default: 10.5V/21V/42V, adjustable
-
Battery recovery set-points Default: 12.5V/25V/50V, adjustable
-
Application: Off grid solar system; Wind generator; Hydro generator
-
Product Size: 19*17*7.25cm(7.4¡±*6.7¡±*2.8¡±in)
Package Listing
-
Bluetooth Dual Power Controller*1
- Bluetooth Gateway*1
-
User manual*1
